Riverhawk Flexural Pivots

The Riverhawk free flex pivots are made by Riverhawk Company. All the product pictures, drawings, parameters, trademark, etc, all right reserved to Riverhawk Company. Please refer to Riverhawk official website for more infomation.

www.riverhawkbearings.com

1，Riverhawk Free Flex Pivots

Cantilevered (Single-Ended) Pivot Bearings

Nominal Outside Diameter (Inch) D +0.0000 -0.0005	Torsional Spring Rate (in-lb) (Degree) See Note 2	Radial Load Capacity (Pounds) Load at Center of "A" See Note 1		Axial Load Capacity (Pounds)			Catalog Number
Nominal Outside Diameter (Inch) D +0.0000 -0.0005	Torsional Spring Rate (in-lb) (Degree) See Note 2	Vc	Vt	Pa	L ±0.003	A ±0.005	Series 5000 Cantilevered
0.1250	0.0140	25.5	25.5	24.5	0.200	0.095	5004-400
	0.0017	8.9	13.0	12.3			5004-600
	0.0002	1.0	3.7	5.9			5004-800
0.1562	0.0279	39.5	39.5	38.7	0.250	0.120	5005-400
	0.0035	13.8	20.0	19.4			5005-600
	0.0004	1.5	6.0	9.7			5005-800
0.1875	0.0473	56.0	56.0	56.4	0.300	0.142	5006-400
	0.0057	19.8	28.0	27.9			5006-600
	0.0037	12.2	20.2	24.4			5006-660
	0.0007	2.1	8.0	13.9			5006-800
0.2500	0.1141	101.0	101.0	99.0	0.400	0.190	5008-400
	0.0143	35.5	51.0	49.4			5008-600
	0.0018	3.7	14.5	24.7			5008-800
0.3125	0.2234	158.0	158.0	154.0	0.500	0.238	5010-400
	0.0286	55.0	79.0	77.5			5010-600
	0.0036	5.8	23.0	38.8			5010-800
0.3750	0.3840	228.0	228.0	223.0	0.600	0.285	5012-400
	0.0480	80.0	114.0	112.0			5012-600
	0.0058	8.4	32.8	55.4			5012-800
0.5000	0.9080	403.0	403.0	392.0	0.800	0.380	5016-400
	0.1134	141.0	202.0	196.0			5016-600
	0.0142	14.6	58.0	98.0			5016-800
0.6250	1.8500	634.0	634.0	615.0	1.000	0.475	5020-400
	0.2321	222.0	317.0	308.0			5020-600
	0.0295	23.0	93.0	155.0			5020-800
0.7500	3.1800	910.0	910.0	884.0	1.200	0.570	5024-400
	0.3980	318.0	455.0	442.0			5024-600
	0.0500	33.0	130.0	221.0			5024-800
1.0000	7.5200	1620.0	1620.0	1570.0	1.600	0.770	5032-400
	0.9390	567.0	815.0	785.0			5032-600
	0.1175	60.0	236.0	392.0			5032-800
Notes: 1. Pounds at zero deflection based on pure radial load. Performance of pivot is a function of number of cycles, angular travel, and loading. Must use life cycle curves for selection of proper pivot. When the load is applied directly through a single spring, multiply capacity by 0.707. 2. At zero load, Torsional Spring Rate may change with radial load.

2. Riverhawk Free Flex

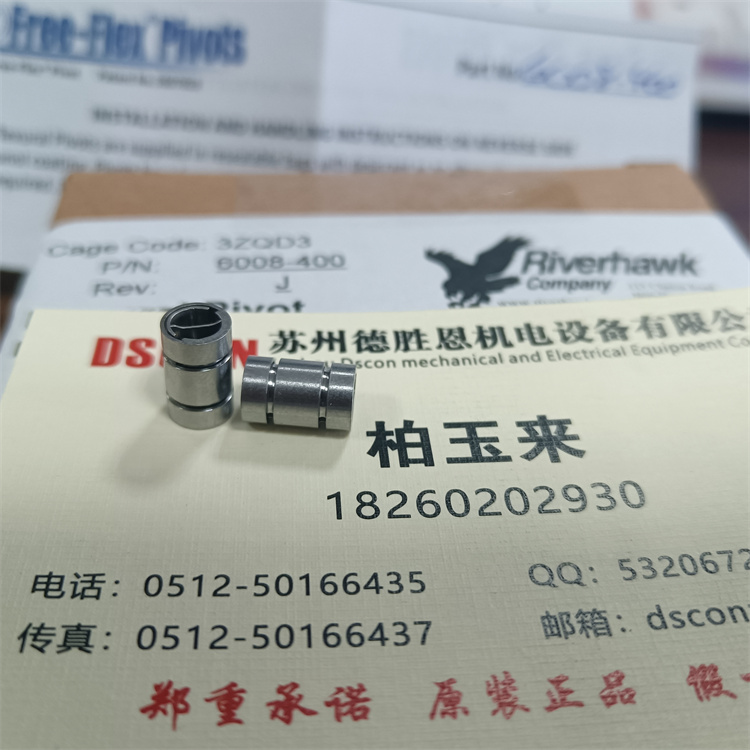

Double End Pivot Bearings

Nominal Outside Diameter (Inch) D +0.0000 -0.0005	Torsional Spring Rate (in-lb) (Degree) See Note 2	Radial Load Capacity (Pounds) Load at Center of "C" See Note 1		Axial Load Capacity (Pounds)				Catalog Number
Nominal Outside Diameter (Inch) D +0.0000 -0.0005	Torsional Spring Rate (in-lb) (Degree) See Note 2	Vc	Vt	Pa	L ±0.003	E ±0.005	C +0.005 -0.015	Series 6000 Double-Ended
0.1250	0.0140	28.0	28.0	24.5	0.200	0.045	0.085	6004-400
	0.0017	17.7	25.0	12.3				6004-600
	0.0002	2.2	4.7	5.9				6004-800
0.1562	0.0279	44.0	44.0	38.7	0.250	0.057	0.110	6005-400
	0.0035	27.6	39.0	19.4				6005-600
	0.0004	3.5	7.4	9.7				6005-800
0.1875	0.0473	63.0	63.0	56.4	0.300	0.067	0.130	6006-400
	0.0057	39.6	56.0	27.9				6006-600
	0.0007	4.9	9.0	13.9				6006-800
0.2500	0.1141	113.0	113.0	99.0	0.400	0.090	0.175	6008-400
	0.0143	70.7	100.0	49.4				6008-600
	0.0018	8.5	19.0	24.7				6008-800
0.3125	0.2234	176.0	176.0	154.0	0.500	0.112	0.220	6010-400
	0.0286	110.0	156.0	77.5				6010-600
	0.0036	14.0	29.0	38.8				6010-800
0.3750	0.3840	253.0	253.0	223.0	0.600	0.135	0.265	6012-400
	0.0480	159.0	225.0	112.0				6012-600
	0.0058	19.8	42.0	55.4				6012-800
0.5000	0.9080	450.0	450.0	392.0	0.800	0.180	0.355	6016-400
	0.1134	283.0	400.0	196.0				6016-600
	0.0142	35.4	75.0	98.0				6016-800
0.6250	1.8500	703.0	703.0	615.0	1.000	0.225	0.445	6020-400
	0.2321	442.0	625.0	308.0				6020-600
	0.0295	55.0	117.0	155.0				6020-800
0.7500	3.1800	1013.0	1013.0	884.0	1.200	0.270	0.535	6024-400
	0.3980	363.0	900.0	442.0				6024-600
	0.0500	78.0	169.0	221.0				6024-800
1.0000	7.5200	1800.0	1800.0	1570.0	1.600	0.370	0.735	6032-400
	0.9390	1131.0	1600.0	785.0				6032-600
	0.1175	141.0	300.0	392.0				6032-800
Notes: 1. Pounds at zero deflection based on pure radial load. Performance of pivot is a function of number of cycles, angular travel, and loading. Must use life cycle curves for selection of the proper pivot. When the load is applied directly through a single spring, multiply capacity by 0.707. 2. At zero load, Torsional Spring Rate may change with radial load.

Riverhawk all the Free Flex Pivots：
5004-400	5005-400	5006-400	5008-400	5010-400	5012-400	5016-400	5020-400	5024-400	5032-400
5004-600	5005-600	5006-600	5008-600	5010-600	5012-600	5016-600	5020-600	5024-600	5032-600
5004-800	5005-800	5006-800	5008-800	5010-800	5012-800	5016-800	5020-800	5024-800	5032-800

6004-400	6005-400	6006-400	6008-400	6010-400	6012-400	6016-400	6020-400	6024-400	6032-400
6004-600	6005-600	6006-600	6008-600	6010-600	6012-600	6016-600	6020-600	6024-600	6032-600
6004-800	6005-800	6006-800	6008-800	6010-800	6012-800	6016-800	6020-800	6024-800	6032-800
